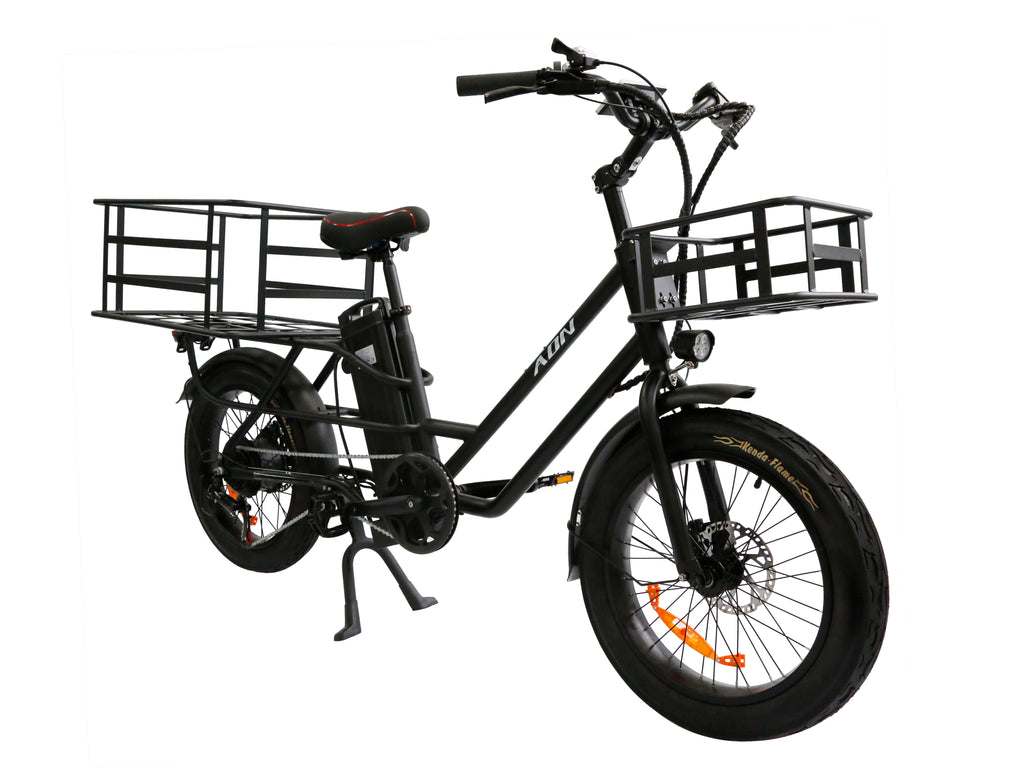

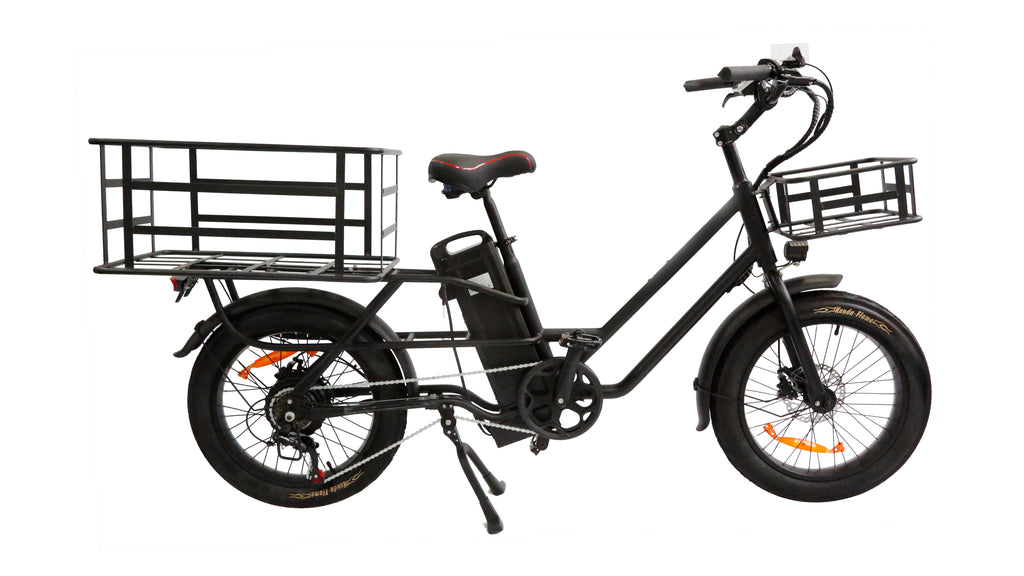

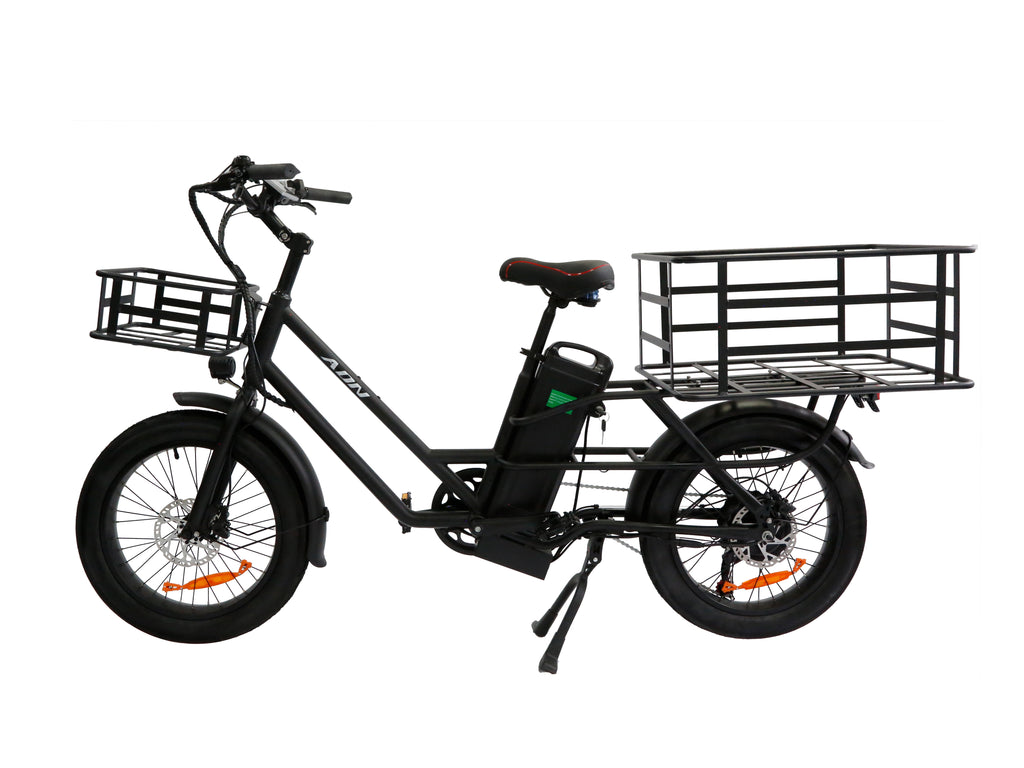

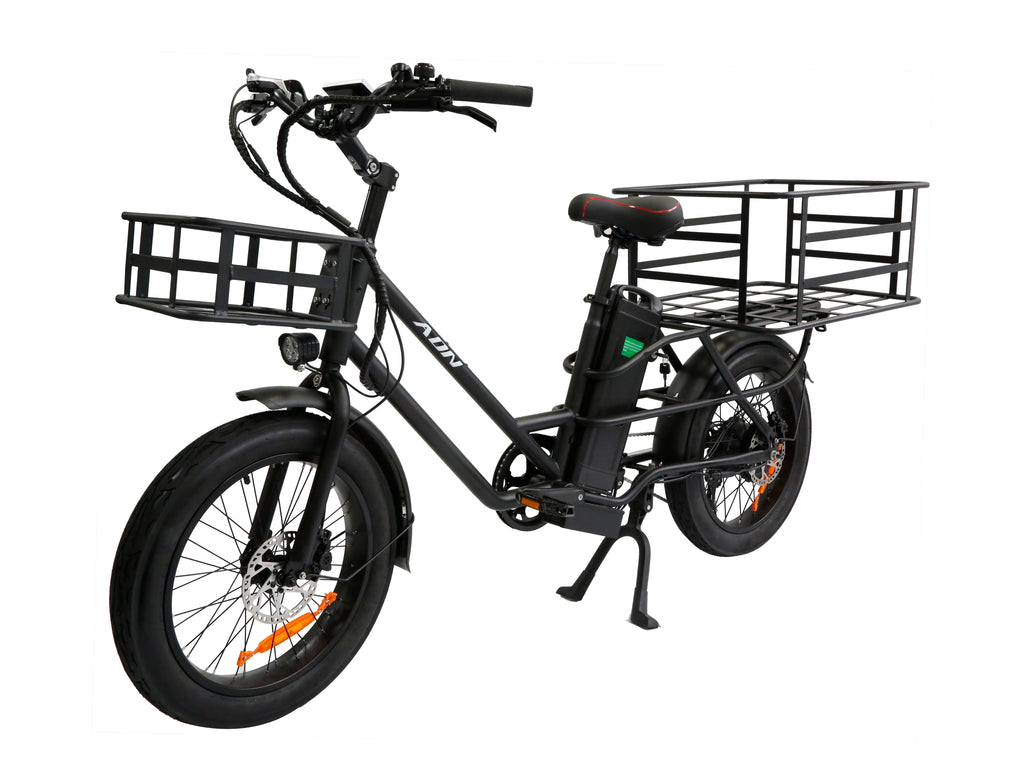

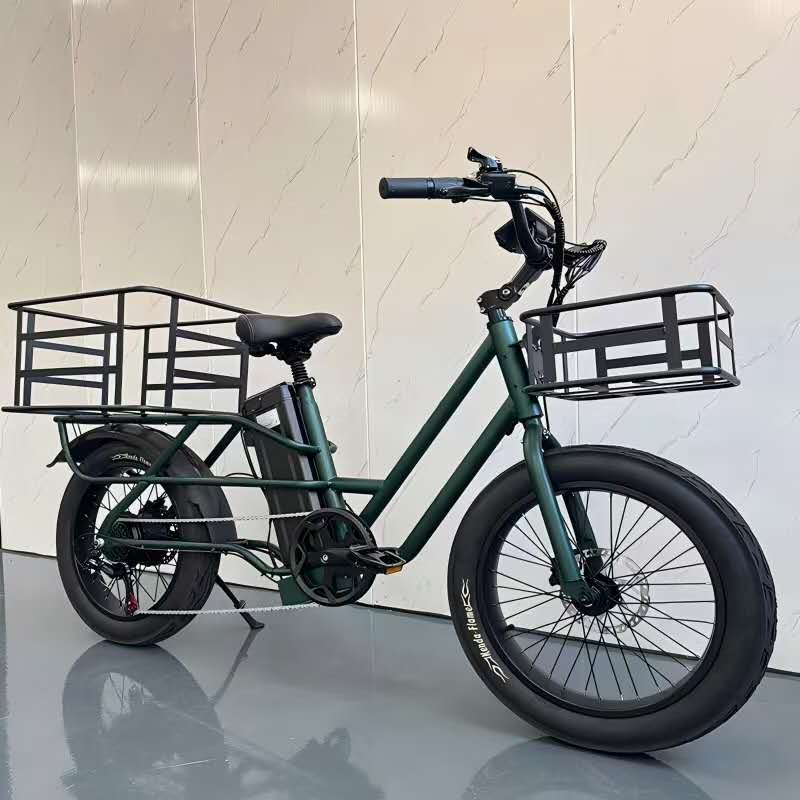

EU Multi-functional Design Ebike AH 20 Inch K750 20*3.0 KENDA Fat Tire Cargo 48V 20.8Ah 750W Electric Fat Cargo Ebike
Ship from EU warehouse.
The ebike comes with a front frame + rear frame by default. If you do not need the front frame + rear frame and only want to buy an ebike, please contact us.
In addition, the ebike can be purchased with a trailer option.
🚲【Powerful 750W brushless motor】
This electric cargo bike is equipped with a 750W high-speed brushless rear wheel motor with smooth and efficient output, and a maximum speed of 25 km/h(can be unlock to 45km/h), which can easily cope with urban shuttle or heavy-load transportation.
🚲【48V 20.8Ah large-capacity removable battery】
Built-in 18650 NCM lithium battery with a capacity of up to 48V 20.8Ah, a pure electric range of 75-85 kilometers, and a range of 90-120 kilometers in pedal assist mode. Supports household socket charging, fully charged in 6-8 hours.
🚲【Multi-function color LCD display】
The bright color screen displays real-time speed, power, endurance and riding mode, allowing you to keep track of riding data at any time.
🚲【Hydraulic disc brake system】
The front and rear hydraulic disc brakes can respond quickly under various road conditions to ensure safety and stability during transportation and riding.
🚲【KENDA 20x3.0 all-terrain tires】
Adopting high-quality KENDA 20×3.0 tires, it has excellent grip and shock absorption performance, and can easily cope with cities, mountain roads, and rural roads.
🚲【Shimano 7-speed transmission system】
Equipped with Shimano professional 7-speed transmission and 52T aluminum crank, it helps multi-road riding, and can switch smoothly whether uphill or flat.
🚲【Powerful load-bearing system】
Equipped with high-strength carbon steel front and rear racks, the front size is 320×300×150mm, the rear size is 650×300×500mm, and the maximum load is up to 300 kg, which is very suitable for high-load requirements such as commercial, take-out, and logistics.
🚲【Three riding modes + five-speed power assist】
Supports three modes: pure pedal, pedal assist, and pure electric, with five-speed electric power assist adjustment to meet different riding needs.
|
Item |
Parameters |
Standard |
|
Appearance |
Material |
High carbon steel |
|
Hub Form |
Wire Spoke Wheel |
|
|
Wheel size |
20*3.0 KENDA |
|
|
Size |
167cm*58cm*120cm (ebike size) 160.5*25*76.5cm( Packing size) |
|
|
Performance parameters |
Gross/Net Weight |
45kgs/42kgs |
|
Max loading |
300kg |
|
|
Speed |
Limit speed: 25km/h, unload the limit speed: about 40km/h |
|
|
Range |
Pure electric model:about 75-85km in assist pedel model: about 90-120km |
|
|
Maximum Climbing Angle |
40 degree |
|
|
Temperature Range |
-10~45/C |
|
|
Waterproof level |
IP54 |
|
|
Electrical specification |
Battery cells |
18650 NCM lithium battery |
|
Battery |
48V13Ah |
|
|
Charger Output |
54.6V 2.0A |
|
|
Charger Input |
100~240V 50/60Hz 3.0A |
|
|
Overcurrent protection value |
1.5A |
|
|
Motor Type |
48V500W high speed drive brushless gear hub motor |
|
|
Charging time |
5-6 hours |
|
|
Product features |
Display |
Multifunctional LCD screen |
|
Front light |
Yes, LED |
|
|
Brakes |
Oil pressure disc brake |
|
|
Tyre style |
Pneumatic tyre |
|
|
Front Fork |
Hard front fork |
|
|
Derailleur level/ Freewheel |
7 Speed chain Shimano |
|
|
Color |
Black/Green |
